Your building envelope is everything that separates indoors from outdoors — walls, roof, attic, and foundation. Spray foam is the only common insulation that also seals that envelope as one continuous air barrier, attacking the air leakage that can account for up to 40% of a home's energy loss.

Spray Foam Building Envelope Insulation in Kansas City

Last updated June 2026

Most Kansas City homes don't have an insulation problem so much as an air problem. Fiberglass batts in the attic do very little while conditioned air pours out through the rim joist, the attic floor, and a vented crawl space. Heartland Foundation Repair of Kansas City has spent 40+ years inside KC homes — foundations, crawl spaces, attics — and we treat insulation the way building science says to treat it: as one continuous envelope, not a pile of separate products. Inspections are free, and you get a written estimate the same day.

What Is a Building Envelope?

A building envelope is the entire system of materials and design elements that controls air movement, water vapor, and temperature in a structure — in plain terms, the exterior shell: walls, roof, floor, and foundation.

For a home to be comfortable, healthy, and affordable to run, three layers have to work together: the insulation (temperature), the air barrier (air movement), and the moisture barrier (water vapor). In traditional construction those are three separate products installed by different crews, with seams, gaps, and staples everywhere they meet — and every seam is a leak waiting to happen. Modern building science treats the envelope as one continuous system, which is exactly what spray foam delivers.

Air Leakage: Where Up to 40% of Your Energy Goes

Air leakage — not thin insulation — is the largest single energy drain in most older homes, responsible for up to 40% of heating and cooling loss.

Energy auditors prove this with a blower-door test: a calibrated fan depressurizes the house while instruments measure how quickly outside air rushes back in through every crack, gap, and penetration. Many older Kansas City homes effectively swap their entire volume of conditioned air for outside air several times an hour. You're paying to heat and cool air that's already on its way out — and no amount of extra fiberglass changes that, because fiberglass filters moving air rather than stopping it.

Ductwork makes it worse. Most heating and cooling equipment lives in the attic or crawl space — outside the conditioned envelope — where heat transfer on the ducts alone can cost roughly 10% of your system's output, and where temperature swings breed condensation and even mold inside the ducts your family breathes from.

Insulation, Air Barrier, and Vapor Retarder in One

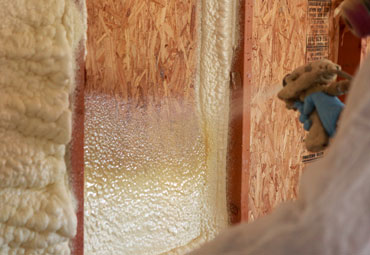

Spray polyurethane foam is the only common building material that works as insulation, a continuous air barrier, and — in its closed-cell form — a vapor retarder, all in a single application.

Because foam is sprayed as a liquid and expands in place, it flows into the gaps, cracks, and odd framing cavities that batts can never fill. There are no seams to tape and no staples to pop. The result is a monolithic layer that insulates and air-seals at the same time, which is why foam routinely outperforms fiberglass and cellulose of the same nominal R-value in real-world homes.

The Whole-House Approach

An envelope only works if it's continuous. We look at the attic, exterior walls, rim joists, and crawl space as one connected system and seal them together.

• Attic — A vented Kansas City attic can hit 130 to 150 degrees in summer, radiating heat into your living space all evening. Spraying foam at the roof deck brings the attic — and the ductwork running through it — inside the envelope. See our attic insulation service.
• Exterior walls — Foam-filled walls stop drafts cold, and with closed-cell foam the wall actually gets more rigid. Learn how spray foam strengthens walls.
• Rim joists — The band of framing where your floor meets the foundation is one of the leakiest spots in any home, and almost always uninsulated. It's a fast, high-payoff foam application.
• Crawl space — Building practice traditionally vented crawl spaces, but those vents pull in humid air, pollutants, insects, and rodents. A sealed, foam-insulated crawl space stays dry and keeps the floors above it warmer.
• Metal buildings — Shops and outbuildings have envelopes too. See metal building insulation.

Comfort, Air Quality, and Moisture Control

A sealed envelope means even temperatures from room to room, fewer drafts, less dust and pollen, and far less condensation inside walls, attics, and ducts.

The old objection — "a house needs to breathe" — has a modern answer: let it breathe through controlled mechanical ventilation, not through holes. When the only air entering your home comes through a system you control, you can filter it, manage its humidity, and stop paying to condition air you never asked for. That matters for allergies, for humidity-driven mold, and for the simple comfort of a bedroom that finally stays the same temperature as the living room.

New Construction and Retrofits in the Kansas City Climate

Spray foam fits both new builds and existing homes. In KC's climate — humid 95-degree summers, sub-zero cold snaps, and 100+ freeze-thaw cycles a year — a tight envelope pays for itself faster than in milder regions.

On new construction, foam goes in before drywall and the envelope is sealed from day one. On existing homes, the highest-payoff areas — attic, rim joists, crawl space — are usually accessible without opening a single wall. Start with our spray foam insulation overview, or have us walk the house and prioritize the work for you.

Frequently Asked Questions

Get a Free Building Envelope Inspection

Call Heartland Foundation Repair of Kansas City at (913) 270-0250, request a free quote, or contact us online. We'll inspect your attic, rim joists, and crawl space, show you exactly where the envelope is leaking, and hand you a written estimate the same day — free, with no pressure and no obligation.
